Wright Windows
1 / 5
| Feature | Specifications |
|---|---|

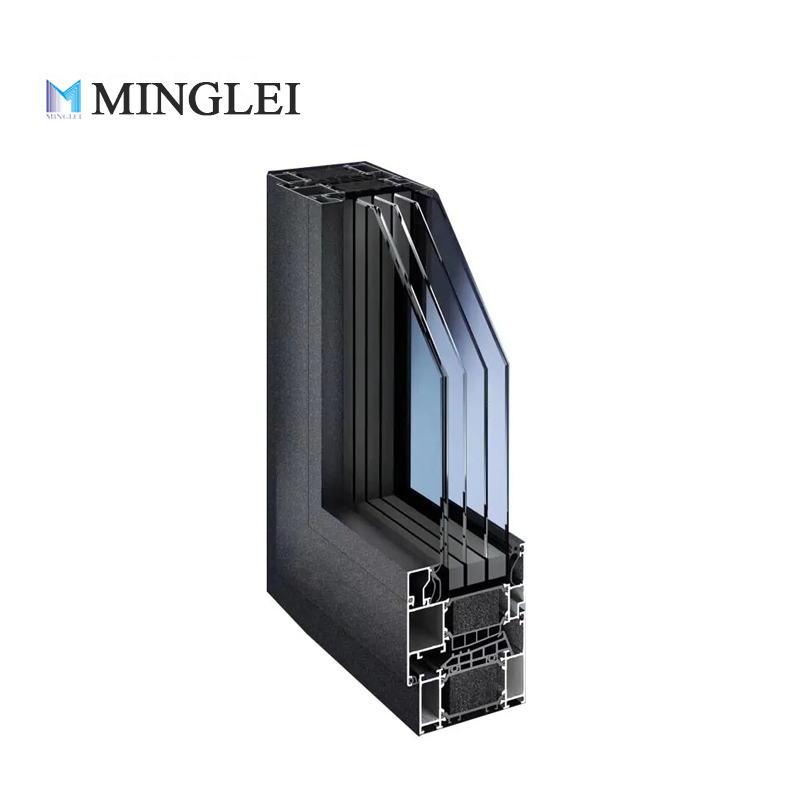

| 1. Profile | 6063-T5 or High Precision 6060-T66 Thermal break aluminum alloy |
| 2. Profile brand | Germany Schuco system, Domestic high-end system |
| 3. Surface finish | Powder coating, Anodized, Woodgrain transfer, Electrophoresis, Fluorocarbon paint. |
| 4. Profile thickness | 1.7 mm - 3.0 mm |
| 5. Glass option |
Double insulated: 5mm/6mm+12A/15A+6mm, warm edge spacer, low-e & argon gas optional Triple insulated: 5mm+ 9A/12A/15A/18A+5mm+ 9A/12A/15A/18A+5mm Laminated: 5mm+ 0.76PVB/1.14PVB+5mm+12A+5mm (Clear, tinted, reflective, tempered) |

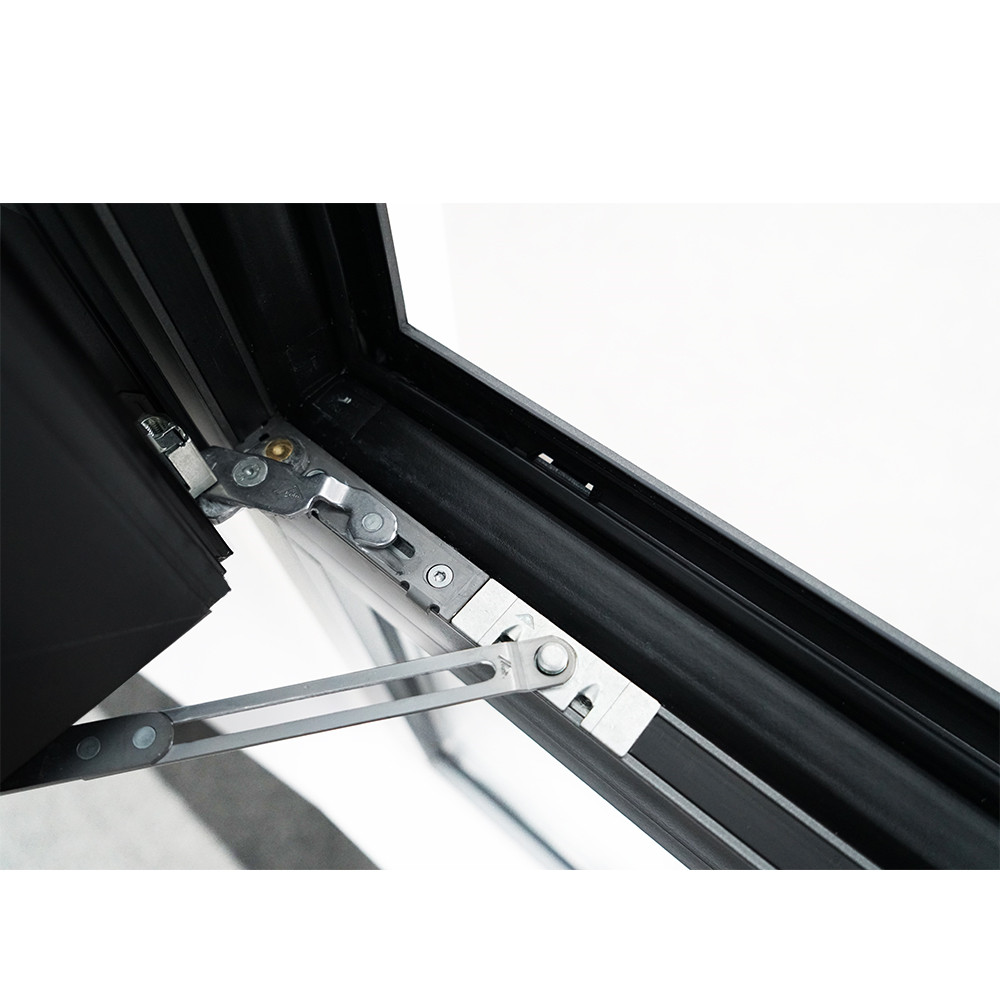

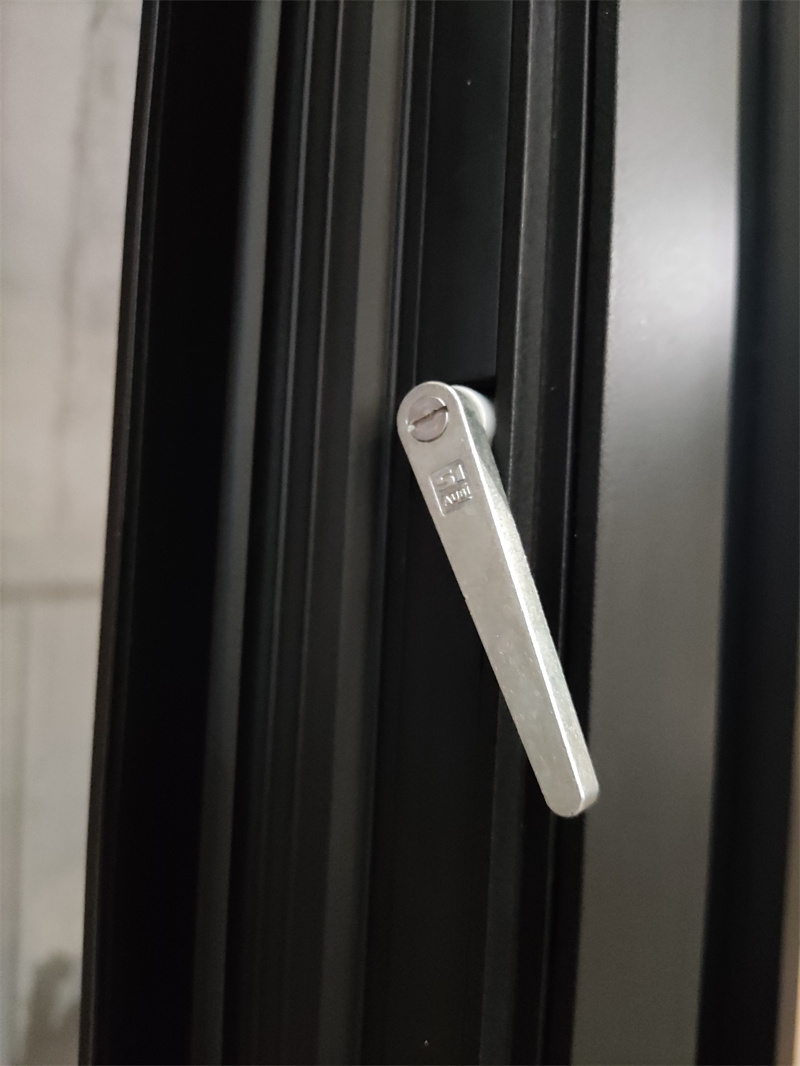

| 6. Hardware | Germany imported Schuco, Siegenia, G-U, Hoppe; Italy Giesse, Sonbinco |
| 7. Seal & strip | Germany Original imported EPDM Rubber sealing strip (black or grey) |
| 8. Screen optional | Nylon/fiberglass mesh, Stainless steel mesh screen, etc. |

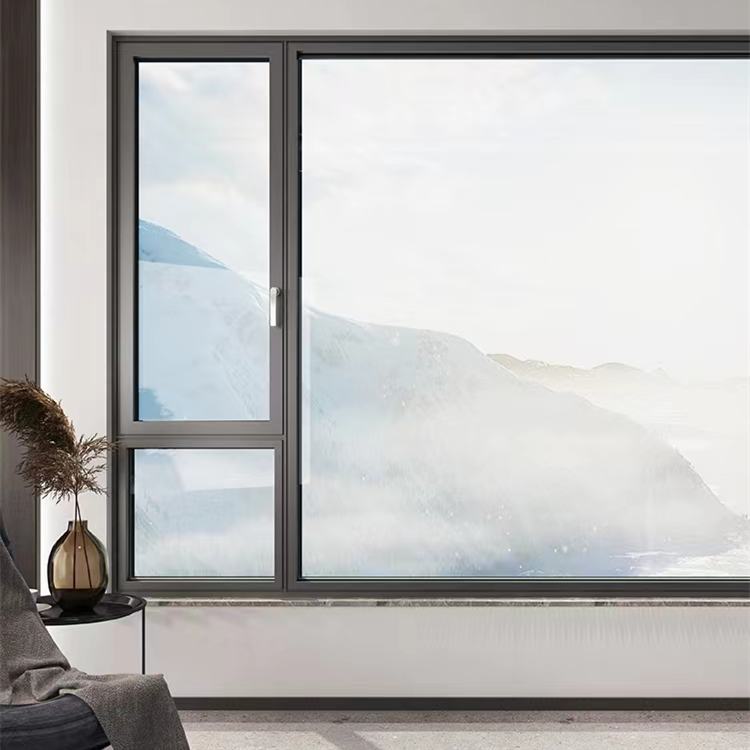

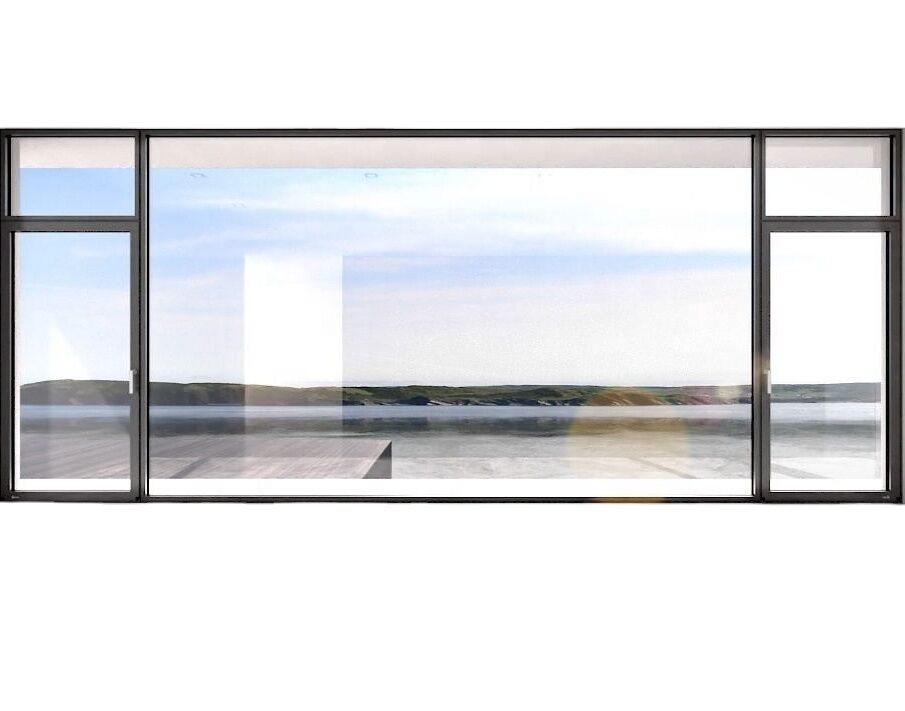

For years, Aluminum windows have been specified by architects and builders for their overall strength and lasting value. Because of their rigidity, durability, and narrow frames, aluminum windows can be configured into a wide variety of combinations that maximize views. They won't rust or rot, requiring low maintenance, and are available with tough anodized or baked-on finishes.
NFRC & NAMI Certified Energy Saving system.
Slim frame design system with high insulation.
Passive house system with maximum insulation.

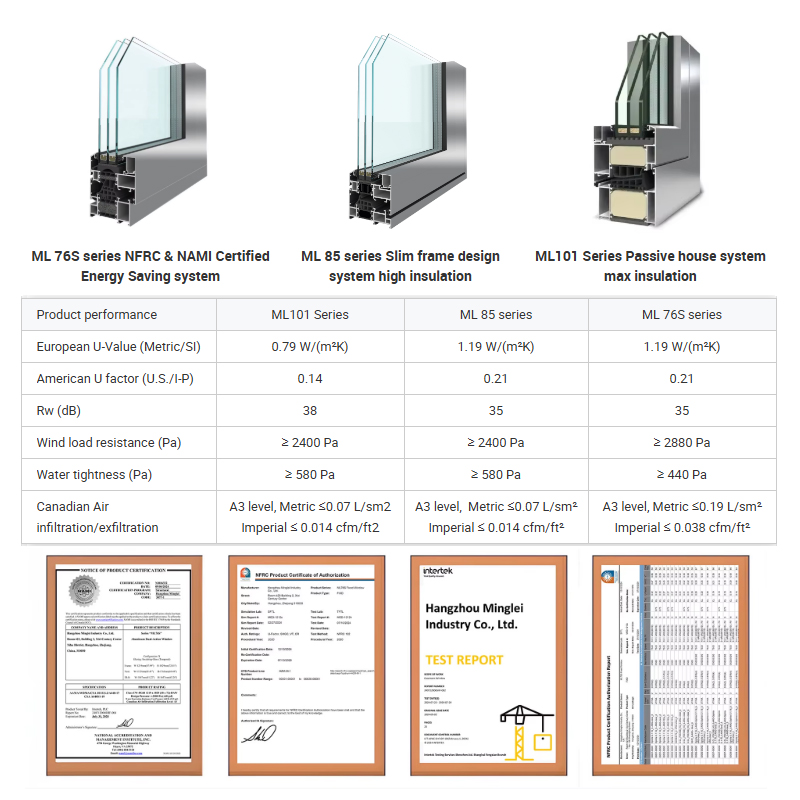

| Performance Metric | ML101 Series | ML 85 Series | ML 76S Series |
|---|---|---|---|
| European U-Value (Metric/SI) | 0.79 W/(m²K) | 1.19 W/(m²K) | 1.19 W/(m²K) |
| American U factor (U.S./I-P) | 0.14 | 0.21 | 0.21 |
| Sound Reduction Rw (dB) | 38 | 35 | 35 |

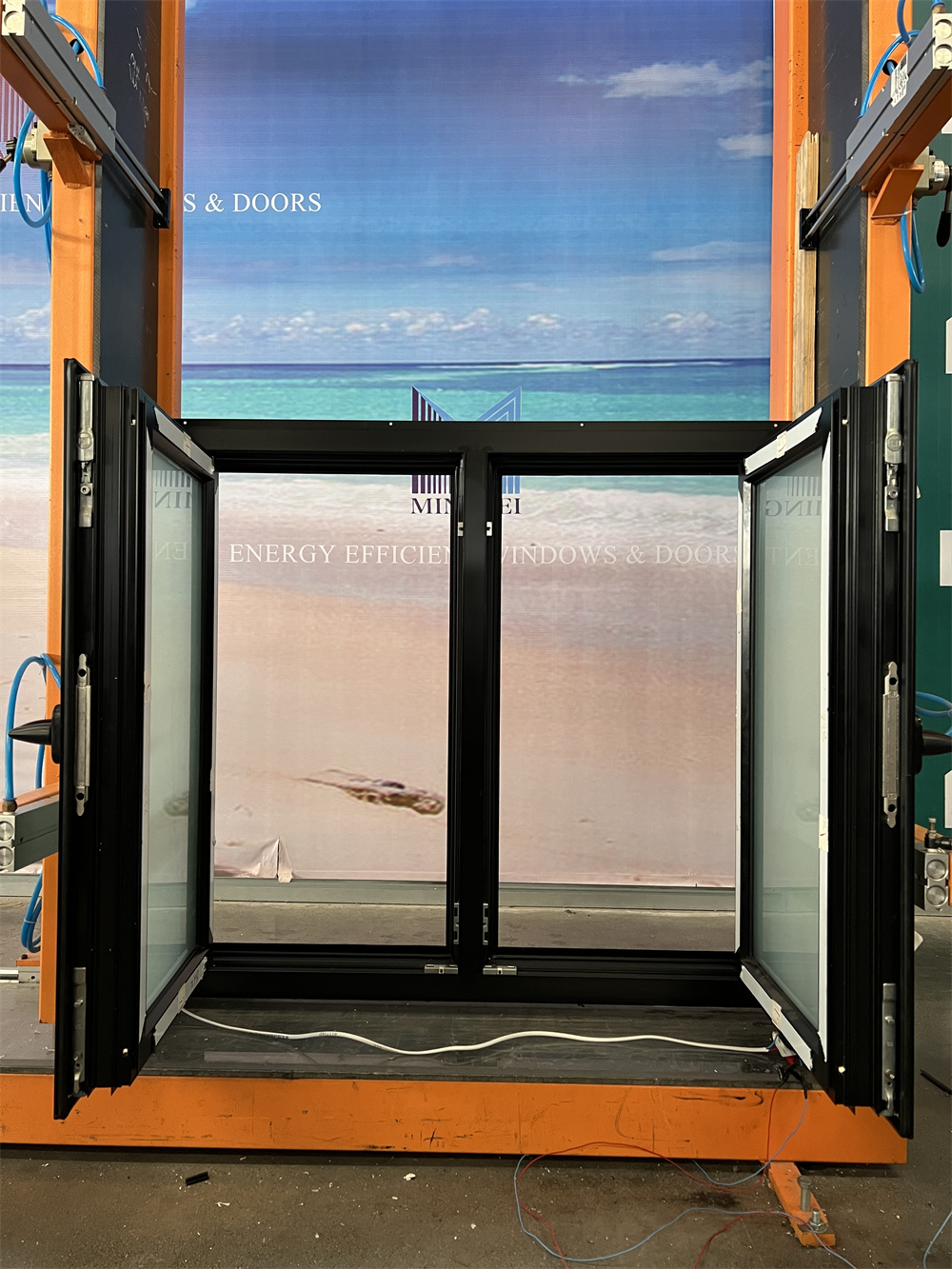

| Wind load resistance (Pa) | ≥ 2400 Pa | ≥ 2400 Pa | ≥ 2880 Pa |
| Water tightness (Pa) | ≥ 580 Pa | ≥ 580 Pa | ≥ 440 Pa |
This project features a luxury mansion where we provided top-grade thermal insulation triple-glazed aluminum alloy doors and windows. The solution focused on sound insulation, heat insulation, and windproof performance.
Professional Door-to-Door Services
Our specialized transportation team handles customs clearance, documentation, and importation for seamless delivery.
Durability & 25-Year Warranty
High-quality aluminum and TPS glazing ensure no air leakage or fogging for 25 years, plus a 10-year warranty on hardware.
Free Design Assistance
We provide CAD & BIM drawings, installation designs, and budget optimization analysis at no extra cost.
Save on Installation Costs

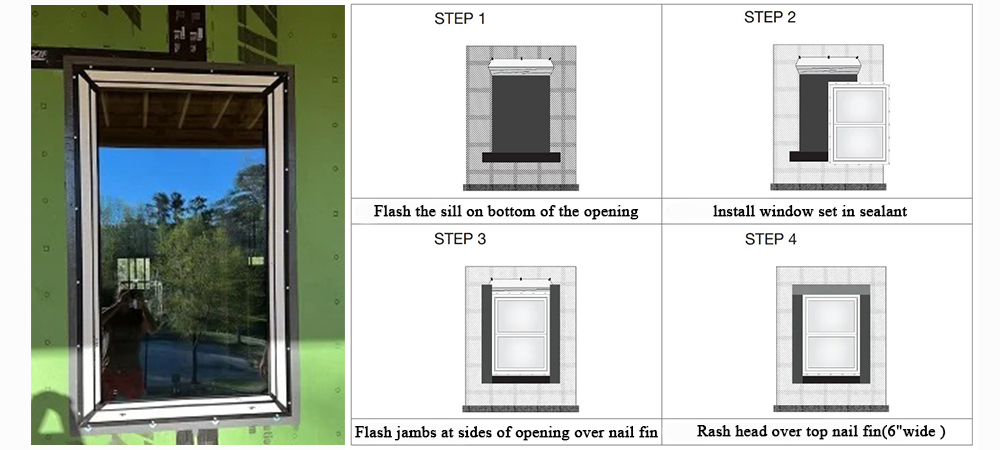

Unique patented nail fin structures make installation quick and easy, significantly reducing labor expenses.
Guaranteed 0 Damage Packaging
Each window is packed in four layers and placed in shockproof, non-fumigated wooden boxes for safe transport.
Time Efficiency on Delivery
With priority booking rights and high-productivity factories, we guarantee timely arrival even during peak seasons.
Inspector’s Verification Support
Our products meet US and Canadian building codes with all necessary insulation and performance certifications.

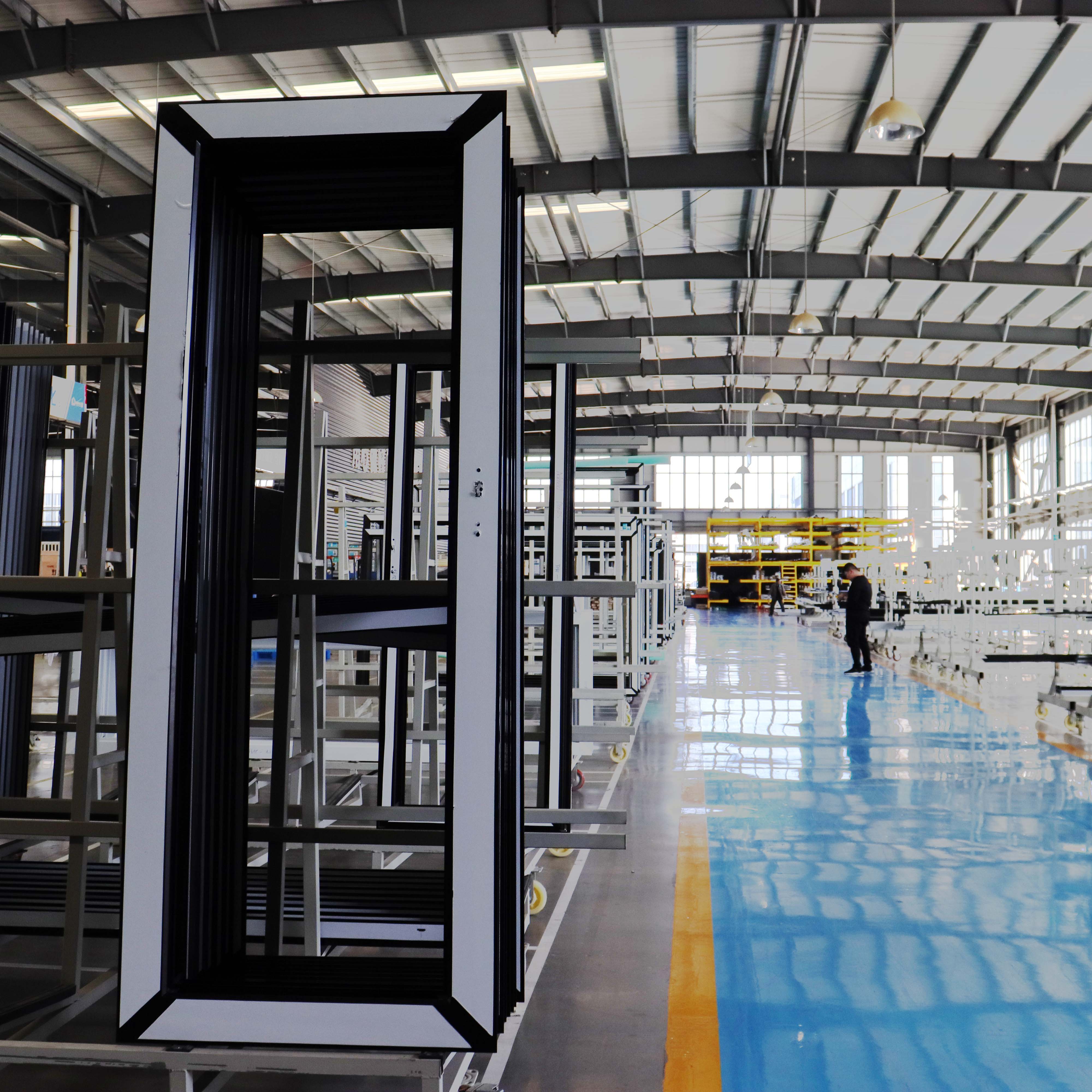

High Productivity Capacity

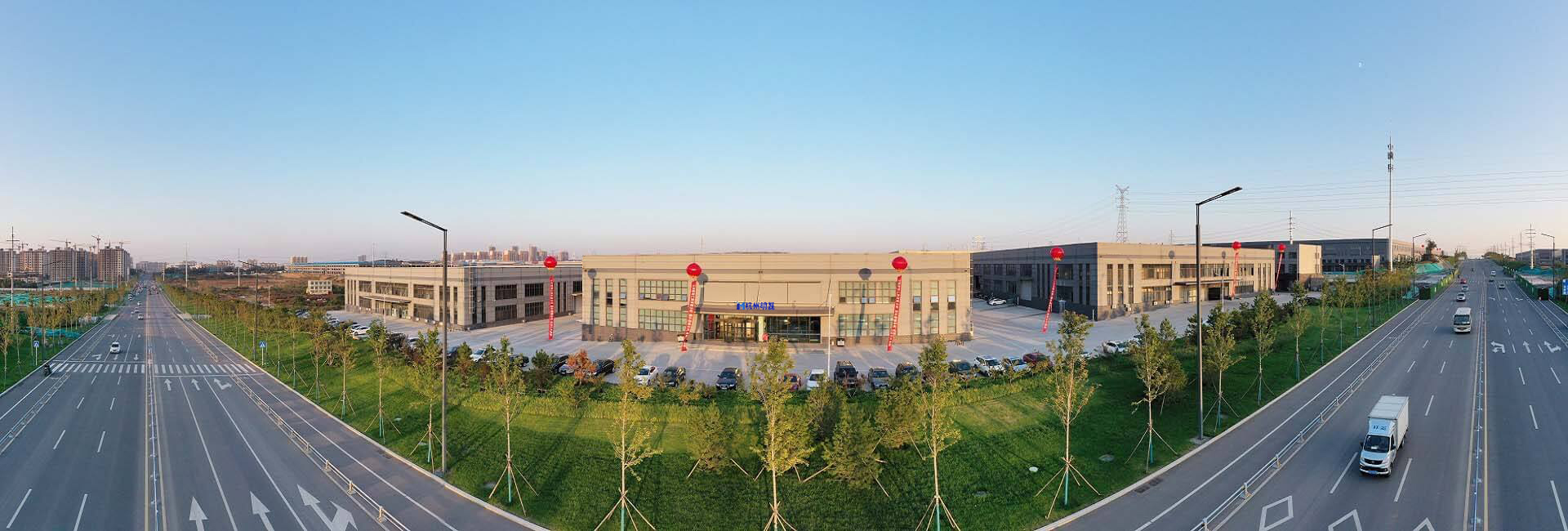

Over 100,000㎡ factory area with 500,000㎡/year capacity ensures the fastest possible production for large projects.
